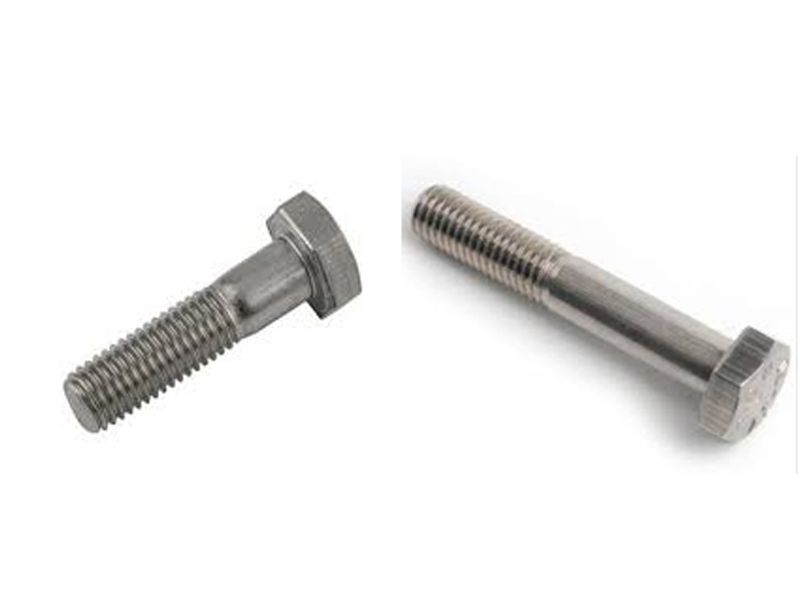

| METRIC SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL(METRIC SERIES) | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| HEX BOLT | METRIC: M6 to M72 | Class .4.6, 5.6, 8.8, 10.9, 12.9 | IS 1363/ IS 1364 Part 1/ Din 931/ ISO 4016 / ISO 4014 | IS 1367 PART 3 /ISO 898-1 |
| GR. B8,B8M, B8A,B8MA, B7, B7M, B16, L7, L7M | ASME B18.2.3.1M, B18.2.3.2M, B18.2.3.3M, B18.2.3.5M | ASTM A193 /ASTM A320 | ||
| A2-70, A4-70 | IS 1363/ IS 1364 Part 1/ Din 931/ ISO 4016 / ISO 4014 | IS 1367 Part 14, ISO 3506-1 | ||
| INCH SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL(INCH SERIES) | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| HEX BOLT | INCH SERIES: 1/4” to 2" | BS 1768 GR.R S,V | BS 1768 | BS 1768 |
| Gr.1, 2 , 5 & 8 | ASME B18.2.1 | SAE J429 | ||
| GR. B8,B8M, B8A,B8MA, B7, B7M, B16, L7, L7M | ASME B18.2.1 | ASTM A193 / ASTM A320 | ||
| A2-70, A4-70 | BS1083 | IS 1367 Part 14, ISO 3506-1 | ||

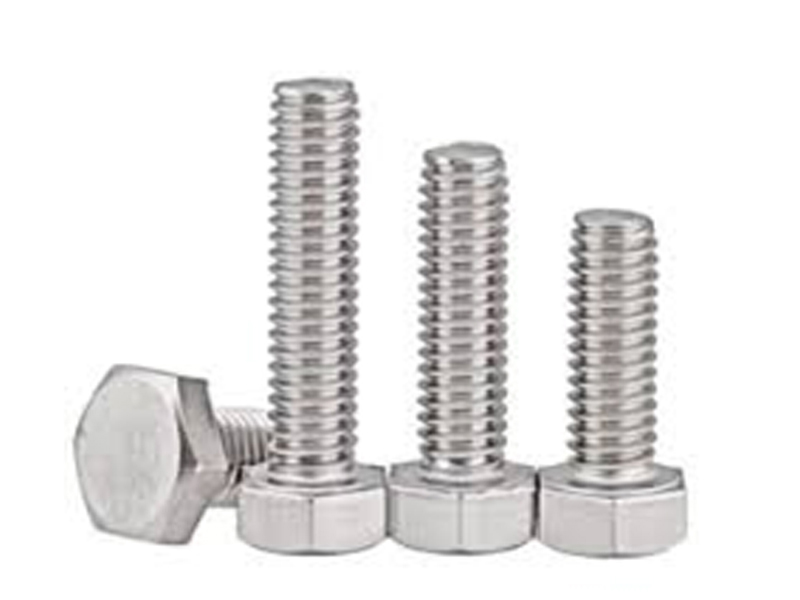

HEX SCREW
| METRIC SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL(METRIC SERIES) | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| HEX SCREW | METRIC: M6 to M72 | Class .4.6, 5.6, 8.8, 10.9, 12.9 | IS 1363/ IS 1364 Part 1/ Din 933/ ISO 4017 / ISO 4018 | IS 1367 PART 3 /ISO 898-1 |
| GR. B8,B8M, B8A,B8MA, B7, B7M, B16, L7, L7M | ASME B18.2.3.1M, B18.2.3.2M, B18.2.33M, B18.2.3.5M | ASTM A193 /ASTM A320 | ||
| A2-70, A4-70 | IS 1363/ IS 1364 Part 1/ Din 933/ ISO 4017 / ISO 4018 | IS 1367 Part 14, ISO 3506-1 | ||
| INCH SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL(INCH SERIES) | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| HEX SCREW | INCH SERIES: 1/4”,to 2" | BS 1768 GR.R S,V | BS 1768 | BS 1768 |
| Gr.1, 2 , 5 & 8 | ASME B18.2.1 | SAE J429 | ||
| GR. B8,B8M, B8A,B8MA, B7, B7M, B16, L7, L7M | ASME B18.2.1 | ASTM A193 / ASTM A320 | ||
| A2, A4 | BS1083 | IS 1367 Part 14, ISO 3506-1 | ||

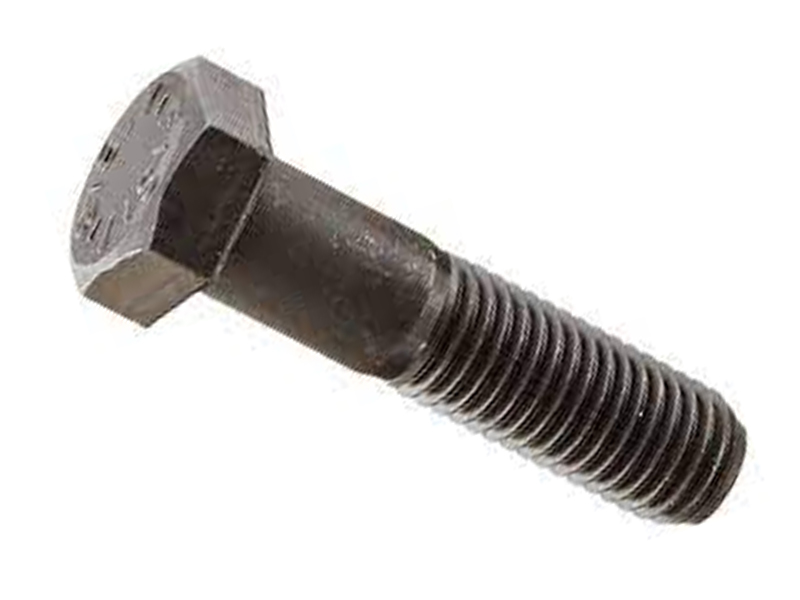

HEAVY HEX BOLT
| METRIC SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL(METRIC SERIES) | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| HEAVY HEX BOLT | METRIC: M16 to M36 | Class 8S , 10S | IS 3757 | IS 1367 PART 3 |
| ASTM A490 Type 1, / GR.8S , 10S | ASME B18.2.3.7M | ASTM A490M / ASTM A325M | ||
| GR.B7 | ASME B18.2.3.7M | ASTM A193 | ||
| GR. B8,B8M, B8A,B8MA, B7, B7M, B16, L7, L7M | ASME B18.2 | ASTM A320 | ||
| INCH SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL(INCH SERIES) | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| HEAVY HEX BOLT | INCH SERIES: 1/4”,to 2" | INCH SERIES: 1/4”,to 2" | BS 1768 GR.R S,V | BS 1768 |
| Gr.1, 2 , 5 & 8 | ASME B18.2.1 | |||
| GR. B8,B8M, B8A,B8MA, B7, B7M, B16, L7, L7M | ASME B18.2.1 | |||
| A2-70, A4-70 | BS1083 | |||

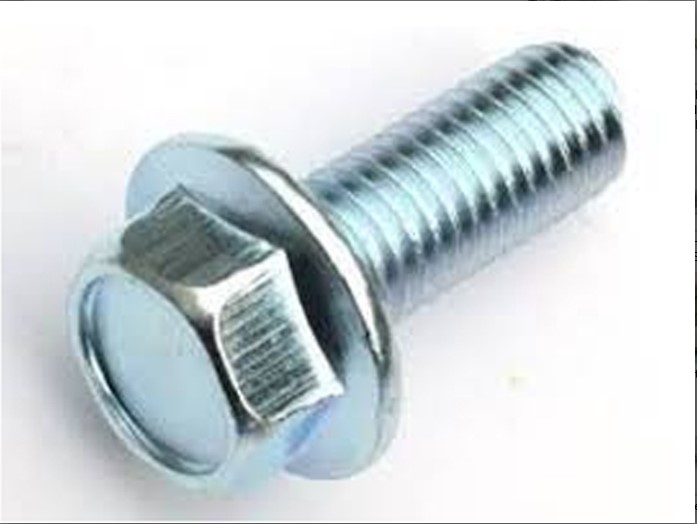

FLANGE BOLT
| PRODUCT DETAIL | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
|---|---|---|---|---|
| SERRATED FLANGE BOLT | M6 to M12 | Class 8.8, 10.9 | DIN 6921 | ISO 898 PART 1 |
| A2-70, A4-70 | DIN 6921 | IS 1367 Part 14, ISO 3506-1 |

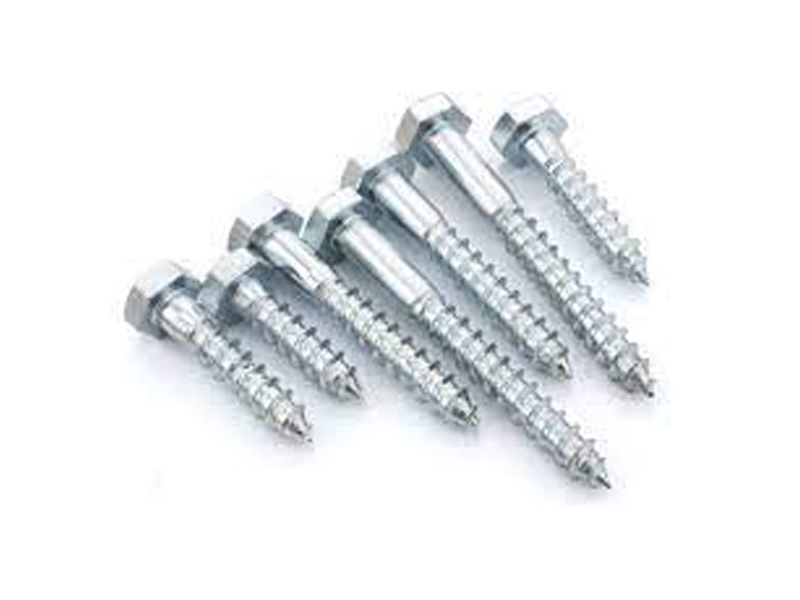

HEX HEAD COACH SCREW
| METRIC SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL (METRIC SERIES) | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| HEX HEAD COACH SCREW | METRIC: M6 to M16 | Class 4.6 | Din 571 | ISO 898-1 |

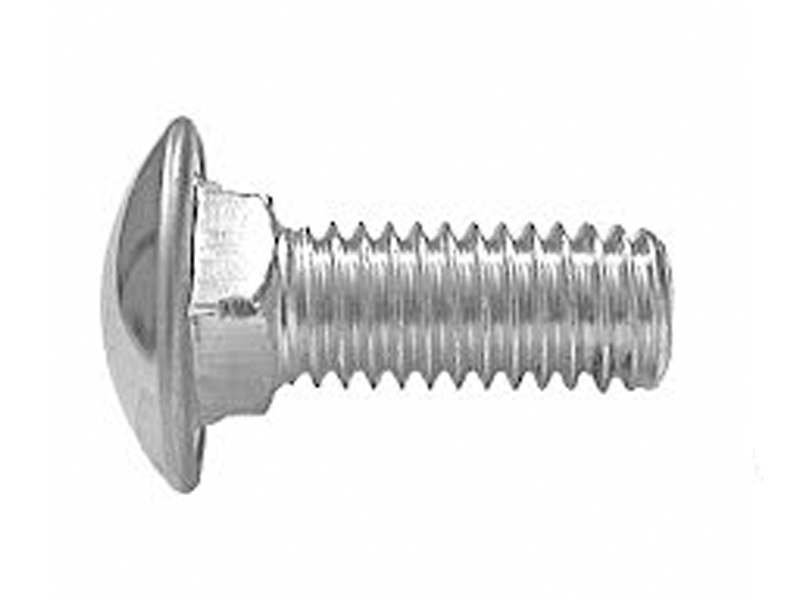

CARRIAGE BOLT
| METRIC SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL(METRIC SERIES) | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| CARRIAGE BOLT | METRIC: M6 to M20 | Class 4.6, | Din 603 | IS 1367 PART 3 /ISO 898-1 |
| A2-70, A4-70 | Din 603 | IS 1367 Part 14, ISO 3506-1 | ||

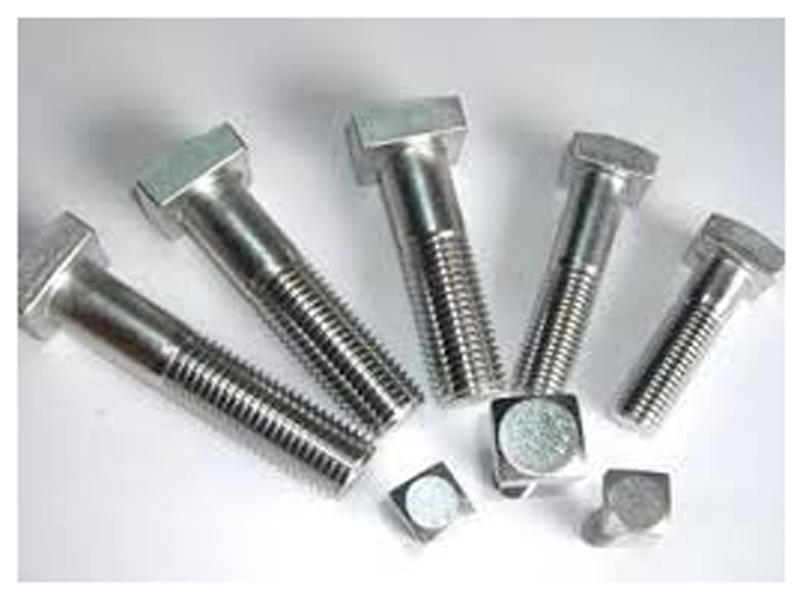

SQUARE BOLT
| METRIC SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| SQUARE HEAD BOLT | M6 to M36 | ASTM A307 GR. A & B | IS 2585 ASTM B18.2.3.10M | ASTM A307 |
| A2-70, A4-50, A4-70 | IS 2585 ASTM B18.2.3.10M | IS 1367 Part 14, ISO 3506-1 | ||
| INCH SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| SQUARE HEAD BOLT | INCH SERIES: 5/8” to 1 1/2" | ASTM A307 GR. A & B | ASME B18.2.1 | ASTM A307 |
| A2, A4 | ASME B18.2.1 | IS 1367 Part 14, ISO 3506-1 | ||
