| METRIC SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| ALLEN HEAD BOLT | METRIC: M3 to M64 | Class 8.8, 10.9, 12.9 | IS 2269 / Din 912 / ISO 4762 | IS 1367 PART 3 / ISO 898 -1 |
| GR. B8,B8M, B8A,B8MA | B18.3.1 | ASTM A193 | ||
| A2-70, A4-70 | IS 2269 / Din 912 / ISO 4762 | IS 1367 Part 14, ISO 3506-1 | ||
| INCH SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| ALLEN HEAD BOLT | INCH SERIES: 1/4” to 2" | BS 2470 | BS 2470 | ISO 3506-1 |
| GR. B8,B8M, B8A,B8MA, | B18.3 | ASTM A193 | ||
| A2-70, A4-70 | BS 2470 | BS 2470 | ||
| A2-70, A4-70 | BS1083 | ISO 3506-1 | ||
SOCKET COUNTER SUNK SCREW
| SPECIFICATION | ||||
|---|---|---|---|---|
| PRODUCT DETAIL | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| COUNTER SUNK SOCKET SCREW | METRIC: M3 to M20 | GR.,8.8, 10.9,12.9 | IS 6761 / Din 7991 | IS 1367 PART 3 |
| GR. B8,B8M, B8A,B8MA | B18.3 | ASTM A193 | ||
| A2-70, A4-70 | IS 6761 / Din 7991 | IS 1367 Part 14, ISO 3506-1 | ||
LOW HEAD CAP SCREW
| METRIC SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| LOW HEAD ALLEN BOLT | METRIC: M3 to M16 | Class 8.8, 10.9 | Din 7984 | IS 1367 PART 3 / ISO 898 -1 |
| GR. B8,B8M, B8A,B8MA | B18.3 | ASTM A193 | ||
| A2-70, A4-70 | Din 7984 | IS 1367 Part 14, ISO 3506-1 | ||

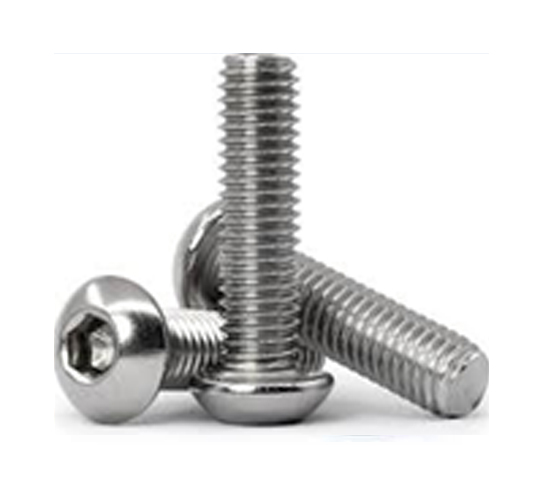

SOCKET BUTTON HEAD SCREW
| METRIC SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| SOCKET BUTTON HEAD ALLEN BOLT | METRIC: M3 to M16 | Class 8.8, 10.9, 12.9 | ISO 7380 | IS 1367 PART 3 / ISO 898 -1 |
| GR. B8,B8M, B8A,B8MA | B18.3 | ASTM A193 | ||
| A2-70, A4-70 | ISO 7380 | IS 1367 Part 14, ISO 3506-1 | ||
SOCKET GRUB SCREW
| METRIC SERIES | ||||
|---|---|---|---|---|
| PRODUCT DETAIL | SIZE/ DIA RANGE | GRADE | DIMENSIONAL SPECIFICATION | CHEMICAL & MECHANICAL SPECIFICATION |
| SOCKET GRUB SCREW | METRIC: M3 to M16 | Class 45H | IS:6094 / ISO 4026 /ISO 4027 / ISO 4028 / ISO 4029 / Din 913 / Din 914/ Din 915/ Din 916 | IS 1367 PART 5 / ISO 898 -5 |
| 12H , 21H | IS 1367 Part 14, ISO 3506-3 | |||
